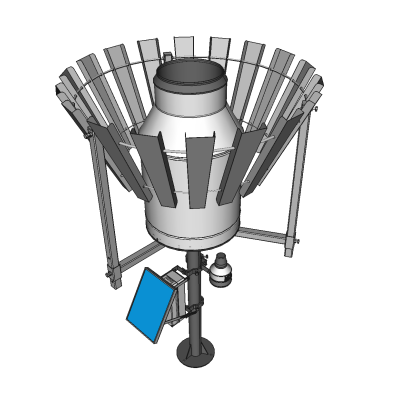

TRWS_30 rain gauge

TRWS_30 rain gauge

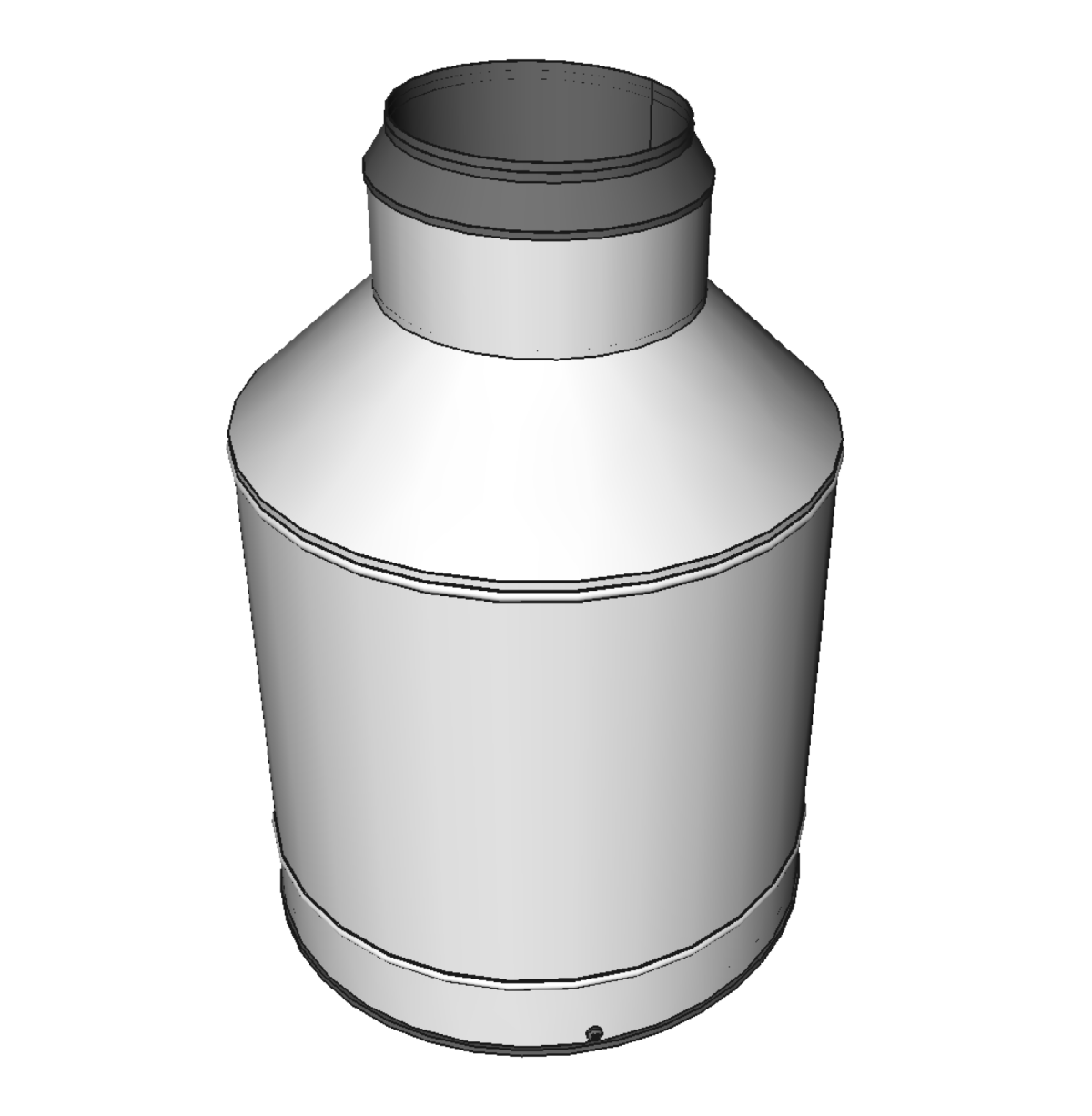

Bucket  capacity  30 liters

Featuring an innovative mechanical and electronic design, the TRWS is an exceptional instrument for measuring all types of precipitation across a wide temperature range, even under extreme wind and snow conditions. Known for its exceptional sensitivity and precision, the TRWS rain gauge combines robust mechanical construction with sophisticated firmware to ensure optimal accuracy and reliability. It is available with orifice size of 200, 314 and 400 cm².

Key features

• Measurement of solid and liquid precipitation, one-minute rain intensity, total sum of precipitation, rain duration
• Elimination of wind vibration, particles, unreal step change of weight, evaporation, temperature fluctuation
• Output signals: contact, RS-485, SDI-12, ModBus
• Ultra low power consumption
• Evaluation and accuracy check in situ
• Local and remote diagnostics
• Autodiagnostic and self check
• Orifice heating
• Direct replacement of tipping bucket rain gauge
• Fixed cable 2 m / 2x M12 Connector + 2x Cable 3 or 10 m (8-pin for data, 4-pin for heating)

Optionally

• Air temperature measurement
• Rain detector
• Wind speed estimation
• Corrected data eliminating wind influence
• Meets all WMO recommendations

Aplications

• Hydrology
• Meteorology
• Environment
• Agriculture

Specification
